Urodynamics & Diagnostics

Giotto

Ref. HCGT001

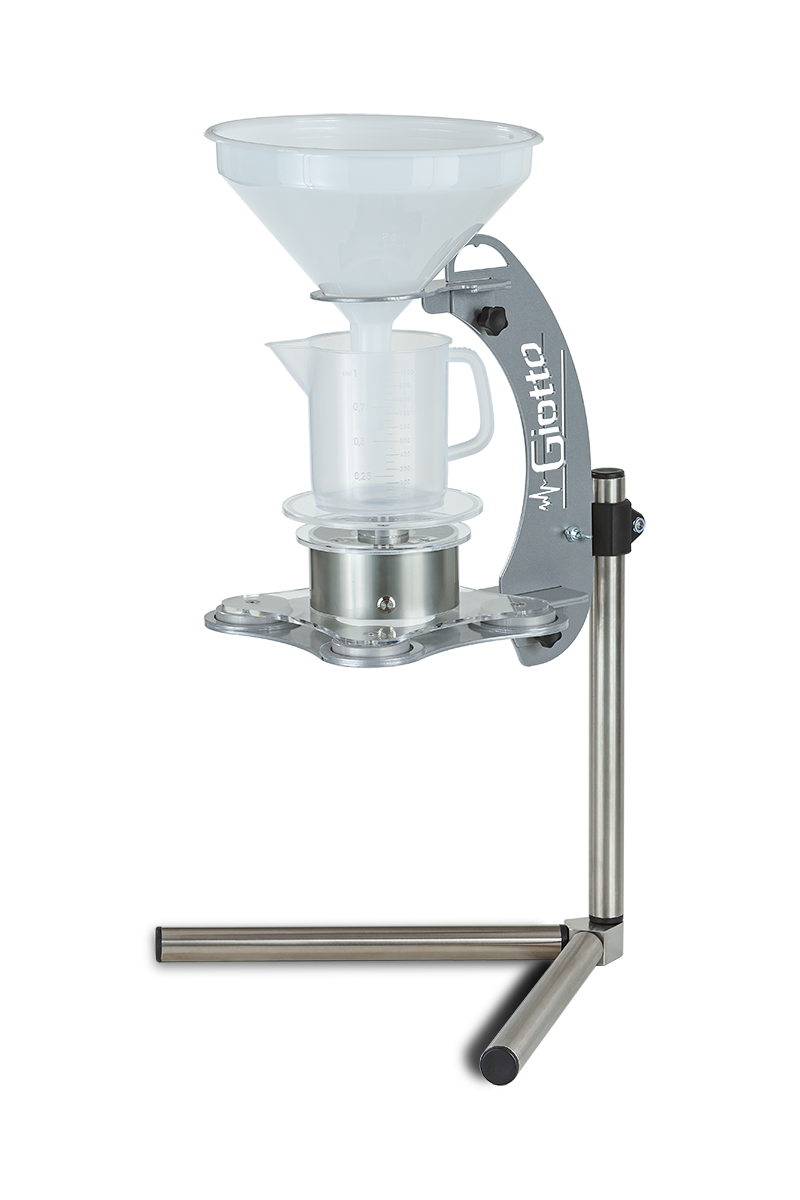

Giotto is the latest and innovative flow meter can detect graphically and analytically the flow and the volume of urine.

Hardware Features

  • Bluetooth Connection: Giotto is able to work through a Bluetooth connection stable and secure systems with PC or Android (Tablet or Smarthphone), which allows you to place in separate areas the flow meter and the processing unit. The advantages are obvious: ergonomic positioning of the different components, with no obstacles related to the wires.

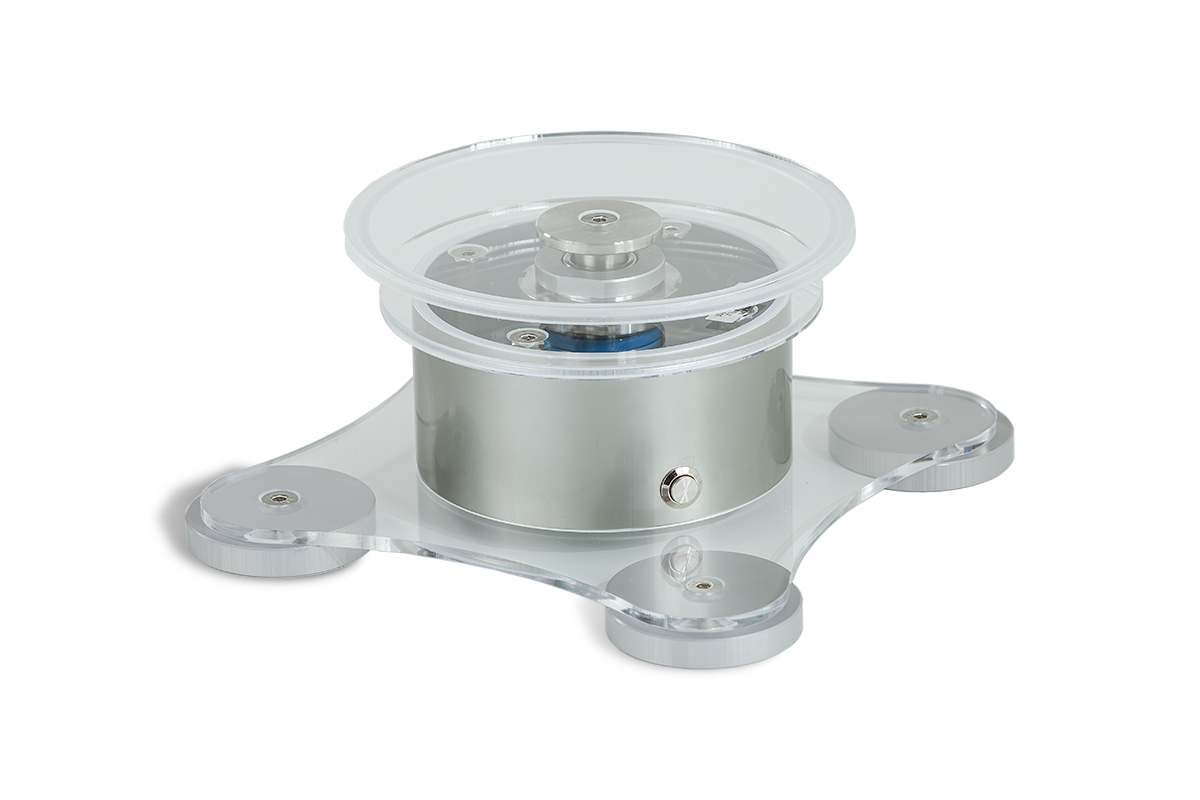

  • Compact System: With its innovative design Giotto presents the small size that allow easy portability. The upper plate is completely removable for simple disinfection and for greater protection of the instrument during transport.
  • Color Code: The LEDs light (green, blue and yellow), you can constantly monitor the system status (active connection, standby or battery).

Software Features

  • Easy for Use: The software analyzes simple and intuitive it allows accurate evaluation according to the International Standards ICS. The application also includes inserting records of the patient and a space dedicated to reporting. Nomographs complete the print report.
  • Customization: Using the "Edit Mode" you can move the start marker, end and maximum flow to eliminate any artifacts.
  • Reporting: The software generates a report in PDF format that you can print or export for archiving.

Technical Features

Power
  • Rapid charger: 100-240 VAC, 50/60 Hz
Flow Channel
  • Range: 0-50 ml/sec
  • Precision: +/- 5%
  • Sample Rate: 10 Hz
Volume Channel
  • Range: 0-2000 ml
  • Precision: +/- 5%
  • Sample Rate: 10 Hz
Dimensions
  • Base: 210x210 mm
  • Height: 90 mm
  • Plate: Ø 160 mm
  • Weight: 1,3 Kg
