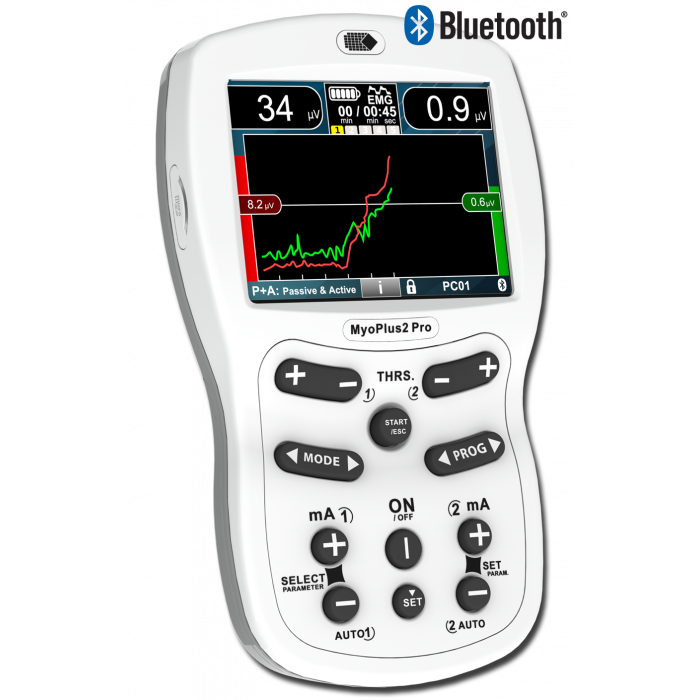

Myoplus 2 PRO

The new user-friendly interface makes it a self-explanatory unit with interactive learning during operation, including electrode placement, EMG chart execution and also many other useful tools:

  • Pre-set programs for incontinence treatment, sports and muscle development, neuro-muscular rehabilitation.
  • Designed taking into account the needs of Physiotherapists, to be used as a portable instrument.
  • Suitable as a personal trainer for use in clinic or home (under consulting).
  • 2-channel EMG (Biofeedback) combined with 2-channel NMES (stimulation).
  • 2-channel ETS (stimulus triggered by EMG) with stimulation on 2 channels.
  • Simple single-phase or multi-phase operation: the multi-phase operation allows EMG / ETS / STIM to be combined into a single program.
  • Multilingual screen and voice instructions for Biofeedback.
  • Manual and automatic threshold control.
  • EMG biofeedback between stimulation (indication of muscle activity and fatigue when using muscle stimulation).
  • Independent or used device in combination with the proven multilingual software.
  • Now with Bluetooth connectivity! The unit sends up to 10 meters of wireless data to PC software
  • For home users: Produces and prints (with the optional PC Software) complete reports of patient progress on a daily basis providing average readings (2 channels) on work / rest, peak, onset times and muscle release , work and rest deviations and the average current in mA.
  • Used as a learning tool for both the patient and the doctor with emphasis on improving treatment techniques with the use of EMG and neuromuscular stimulation.
  • 4 AA batteries (mains power is not required)


Technical Specifications

EMG (Biofeedback)
  • Double EMG channel
  • EMG Range: 0.2-2000 mV RMS (continuous)
  • Sensitivity: 0.l uV RMS
  • Accuracy: 4% of the mV reading +/- 0.3 V at 200 Hz
  • Selectable Bandpass Filter - 3db bandwidth,
  • Wide: 18 Hz +/- 4 Hz at 370 Hz +/- 10% - reading here below 235 microvolts 10 Hz +/- 3 Hz at 370 Hz +/- 10% - Reading above 235 microvolts
  • Narrow: 100 Hz + / - 5% at 370 Hz +/- 10%
  • Notch filter: 50 Hz (Canada 60Hz) - 33 DBS (0 precision 1%).
  • Common mode rejection ratio: 130 dbs Minimum @ 50 Hz
  • Work / rest periods: 2-99 seconds
  • Number of tests: 2-99
STIM (Neuromuscular Stimulation)
  • 2 channel stimulator
  • Type: constant current, maximum power
  • Voltage of 70 Volt +5 / -10 Volt
  • Waveform: symmetrical, rectangular, bi-phasic to zero with continuous current network
  • Pulse width selection: 50-450 mS (2% accuracy)
  • Pulse rate you selected: 2-100 Hz (2% accuracy)
  • Work / rest periods: 2-99 seconds
  • Time 1 - 99 minutes
  • Rise time: 0.1 - 9.9 seconds
  • Preselected or customized treatment programs
  • Open-circuit sensor above 0.5 mA: automatically interrupts the supply and returns the value set to zero.
